How to Loosen a Rusted Bolt Under a Car Without Snapping It

Nothing stops a simple DIY job cold like a rusted bolt on the underside of your car. You slide under to drop a splash shield, pull an undertray, or check the skid plate area, you put a wrench on the fastener, and it will not move - the threads are packed with rust and years of road salt. Force it the wrong way and you round off the head or snap the bolt clean, turning a ten-minute job into a drill-and-extract headache. Here is how to loosen a rusted bolt under a car the patient way, without breaking it off, and how to keep the same plastic-panel fasteners from seizing up on you again.

First, make it safe to work under the car

You are about to put real force on a wrench while lying under a heavy vehicle, so set up properly before you touch a single bolt.

• Park on flat, solid ground and never rely on a jack alone. Support the car on rated jack stands and give it a firm shove to confirm it is stable.
• Chock the wheels that stay on the ground, and leave the car in park or in gear with the parking brake set.
• Wear eye protection. Rust flakes, dried mud, and penetrating oil all fall straight into your face down there.
• Give yourself room to swing. Know where your knuckles will go when the bolt finally breaks loose, so you are not slamming them into a control arm.

What you'll need

• A quality penetrating oil (not general-purpose spray lube)
• A six-point socket or box-end wrench in the exact size
• A breaker bar or a long-handled ratchet
• A small hammer
• A wire brush
• Eye protection and gloves
• Optional: a heat source and a screw-extractor set for the worst cases

How to loosen a rusted bolt under a car, step by step

1. Clean and soak the threads. Wire-brush the loose rust and grime off the head and any exposed threads, then soak the bolt with penetrating oil. Let it wick in - give it fifteen minutes at a minimum, and for a badly seized bolt, soak it, walk away, and come back for a second soak. Patience here is what saves you a snapped bolt.
2. Tap it to break the rust bond. Give the head a few sharp raps with a hammer, straight on and from the sides. The shock cracks the rust that is gripping the threads and helps the oil creep deeper. Re-soak after tapping.
3. Seat the right socket fully. Use a six-point socket, not a twelve-point - six flats grip the corners of the head far better and are much less likely to round it off. Push the socket all the way onto the head before you load it.
4. Add leverage with a breaker bar. Apply slow, steady pressure instead of jerking. A breaker bar gives you controlled force, and a sudden yank is exactly what snaps bolts. Push in the loosening direction (lefty-loosey) and feel for the bolt to give.
5. Add heat if it still won't move. Heat expands the metal and breaks the rust's grip, which is powerful, but be careful. Wipe off the flammable penetrating oil first, and keep any flame well away from fuel lines, brake lines, rubber bushings, wiring, and plastic panels. If any of those are close, this is a good point to stop and let a shop handle it.
6. Work it back and forth. Once it cracks free, do not just spin it out. Back it off a little, snug it in again, then loosen a bit more, adding oil as you go. Working it in both directions clears the crushed rust out of the threads instead of galling them and locking up halfway.

When to stop before you snap it

This is the part most people get wrong. If you are leaning hard and the bolt is flexing but not turning, stop. If the head is starting to deform or the socket is slipping, stop. A snapped bolt or a rounded head is a far bigger job than an afternoon of soaking. Back off, hit it with more penetrating oil, add heat, and give it time. There is no prize for muscling it and no shame in re-soaking it three times. Knowing when to quit pulling is a real skill.

If the bolt rounds off or snaps

Sometimes it lets go before you do. If you rounded the head, a tight-fitting six-point socket or a dedicated bolt-extractor socket can still bite. If the bolt snapped and left a stub, you are into center-punching, left-hand drill bits, and a screw extractor - slow, careful work. If it stripped the threads in the hole, you will need to chase or repair those threads before anything new will hold. None of that is fun under a car, which is exactly why the next section matters.

Stop the rusted-fastener fight next time

Here is the honest truth: a lot of the fasteners under your car do not need to be rust-prone metal at all. Splash shields, fender liners, engine covers, and undertrays are plastic panels, and half the time they are held on by cheap metal screws that corrode solid, or by brittle factory push clips that crumble the moment you touch them. That is the exact fight you just had.

When you put that panel back on, you do not have to reuse a fastener that will rust into the hole again. EirCore EZ-Lock No-Screw Fastening Clips are heavy-duty nylon push-to-lock clips that replace rusty screws and broken plastic factory clips. They snap in by hand, lock tight, and because they are nylon, they cannot rust or corrode the way a metal screw does. Next time you are under there, the panel comes off by hand instead of turning into a wrench-and-heat battle. If your original push clips are the real problem, our guide on how to replace broken car push clips and the walkthrough for when a fender liner came loose both show exactly where these clips go.

An honest note on the pliers

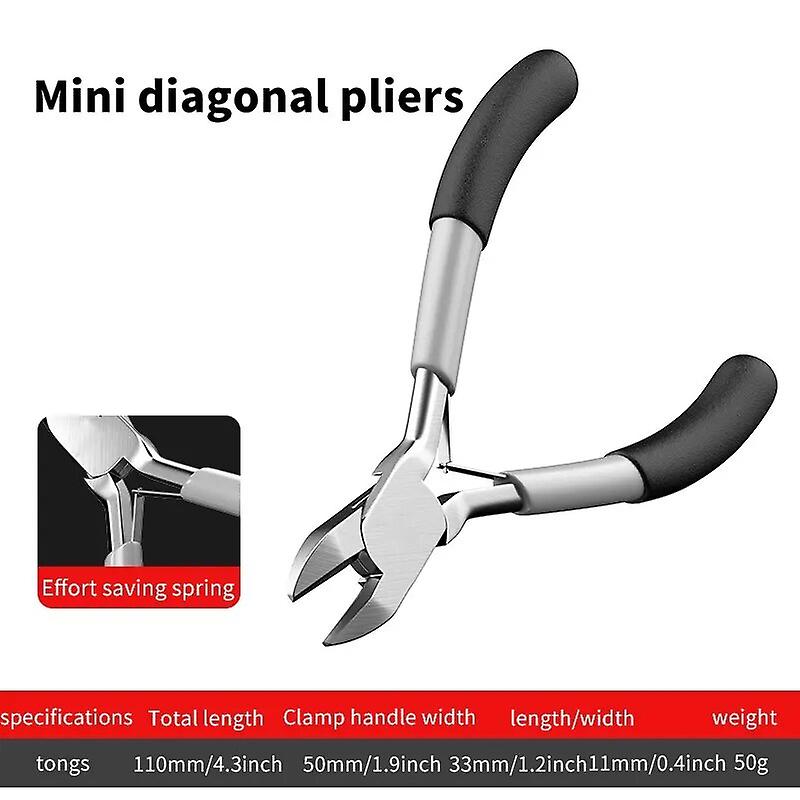

You may see our EZ-Lock Mini Diagonal Pliers alongside the clips, so let's be clear about what they do. They are compact flush cutters for snipping old broken clips, cable ties, and zip ties out of the way - handy for clean-up, but they are cutters, not a tool for backing out a seized bolt. For a rusted bolt, your penetrating oil, the right socket, a breaker bar, and heat are the real tools. Do not expect any pair of cutters to remove a rusted fastener.

The bottom line

Loosening a rusted bolt under a car comes down to patience: clean it, soak it, shock it, use a six-point socket with steady leverage, add heat when you truly need it, and stop before you snap it. Then, when the panel goes back on, skip the fastener that got you into this mess - the rust-proof EZ-Lock No-Screw Fastening Clips and the rest of the DIY fix gear live in our Repair & Care collection, with free worldwide shipping, prices include tax, and a 30-day money-back guarantee. Fix it once, and make the next job the easy one.
