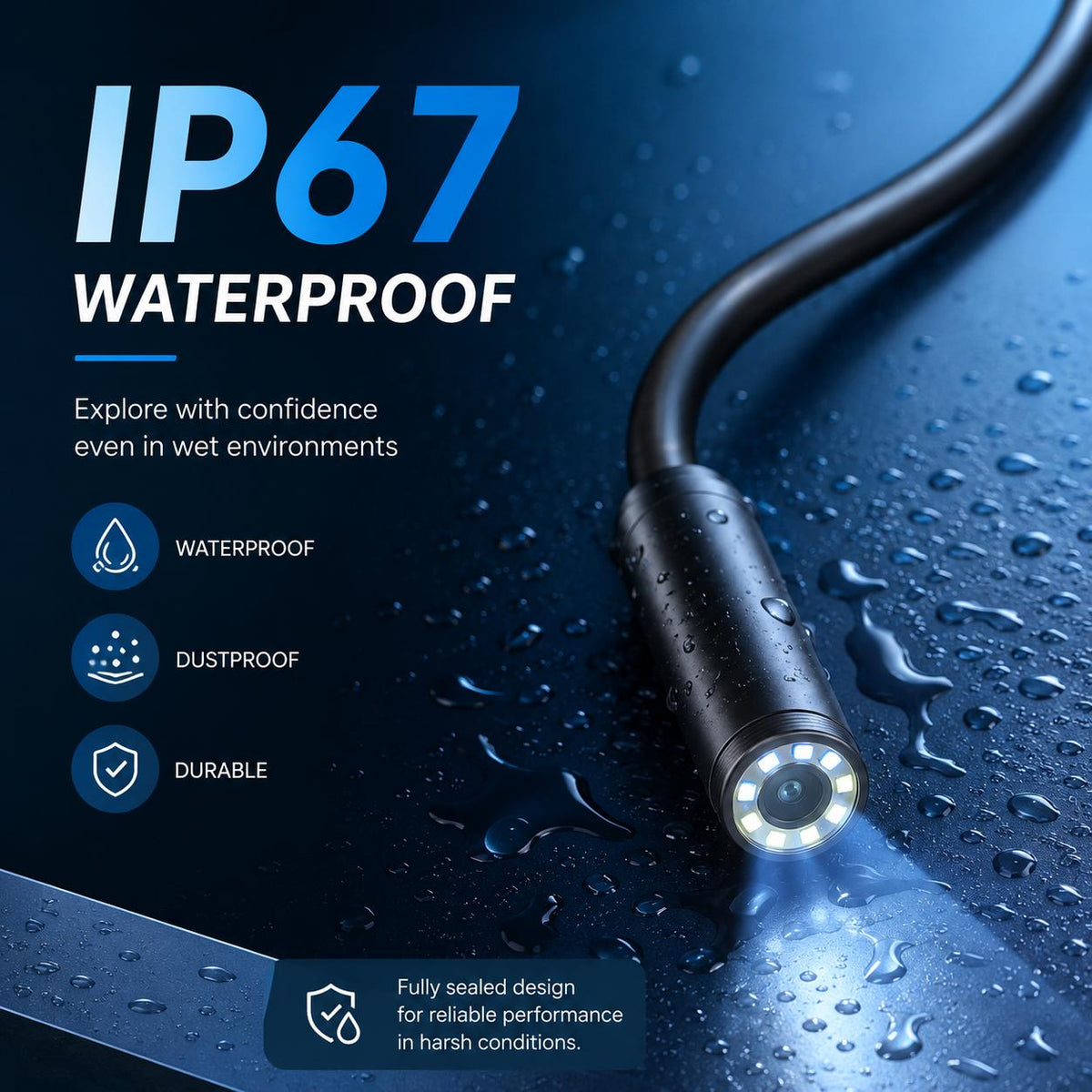

  • The IP67-rated probe head lit up and covered in water droplets, showing the sealed housing

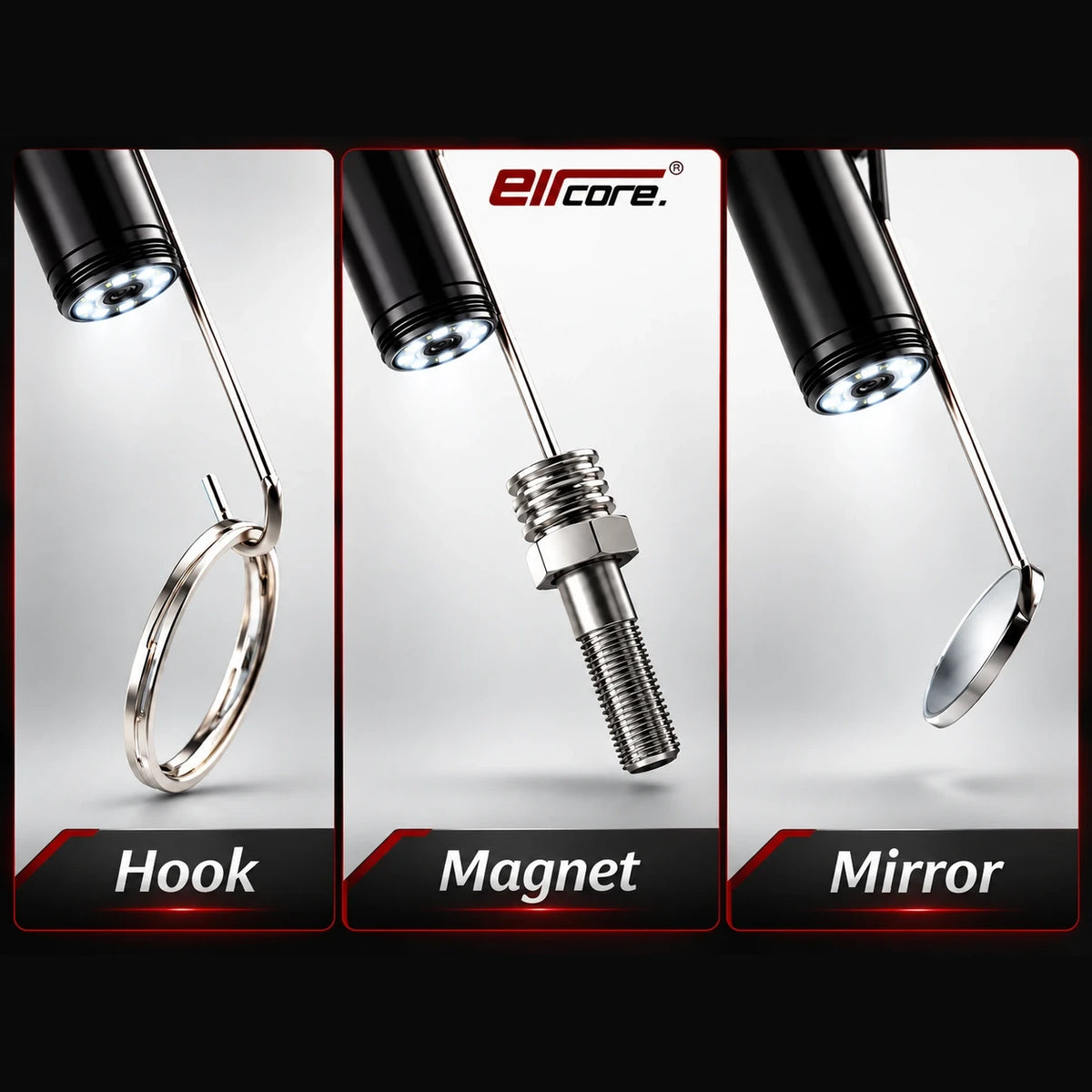

  • The four clip-on tips fitted to the probe: side mirror, retrieval hook, protective hood and magnet lifting a nail
  • A mechanic feeding the probe into an engine bay while the live view plays on the phone propped on the rocker cover

EirCore DeepReach™ — HD Inspection Camera for Engine Bays & Tight Spaces

EirCore DeepReach™ — HD Inspection Camera for Engine Bays & Tight Spaces

$49.95
$49.95
SAVE Sold out
  • Visa
  • Mastercard
  • American Express
  • Discover
  • Diners Club
  • PayPal
  • Shop Pay
  • Apple Pay
  • Google Pay
View full details

You are working blind in there.
DeepReach puts the camera where your eyes will not go.

  • 1920 × 1440 HD · 8 dimmable LEDs

  • 11.5 ft semi-rigid cable — holds the bend you give it

  • Plugs into iPhone or Android · no batteries, no pairing

🚚 Free shipping worldwide ✅ 30-Day Guarantee 🔒 Secure Checkout

Choose your pack

Free tracked shipping worldwide. Struck prices are the same number of cameras bought one at a time.

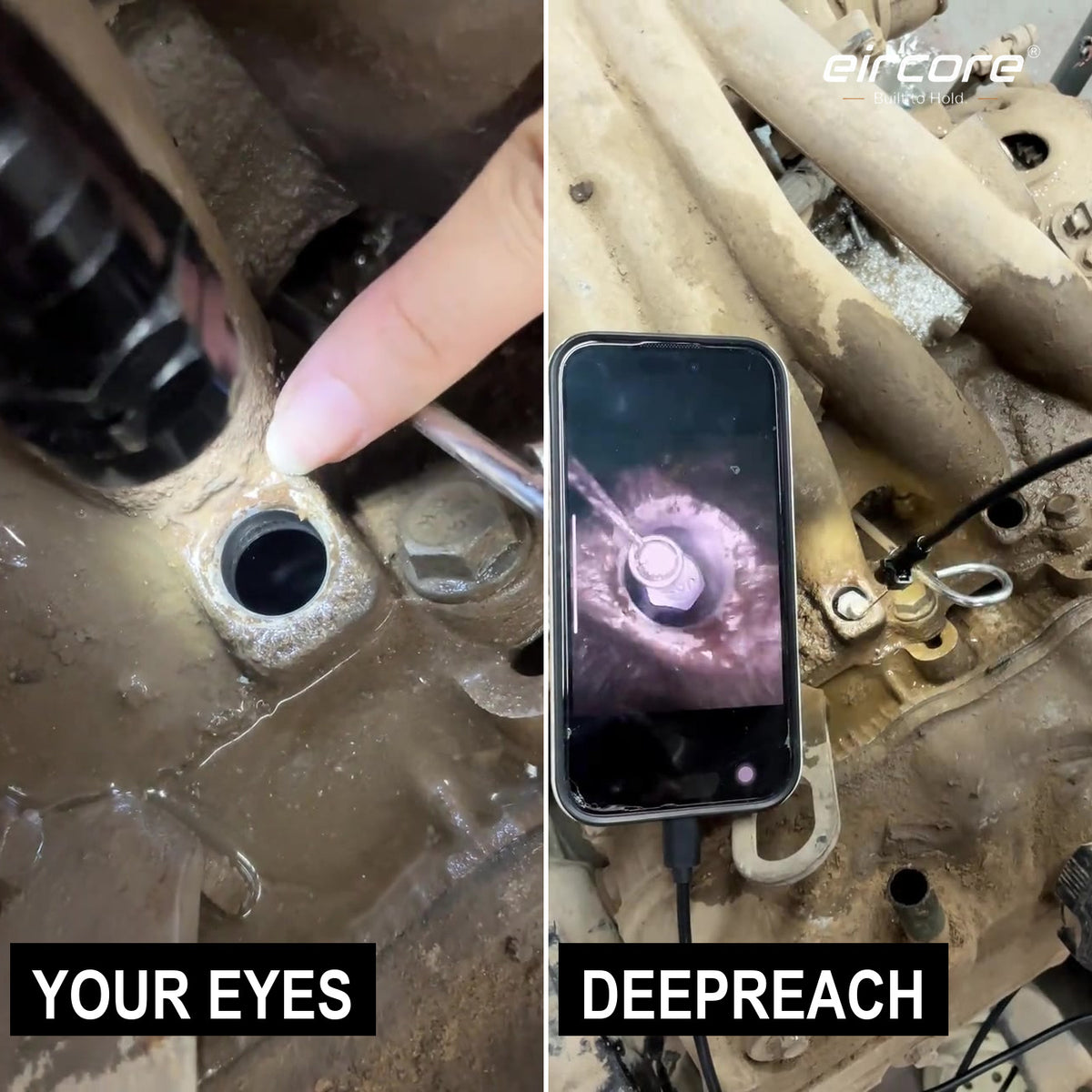

See It in Action

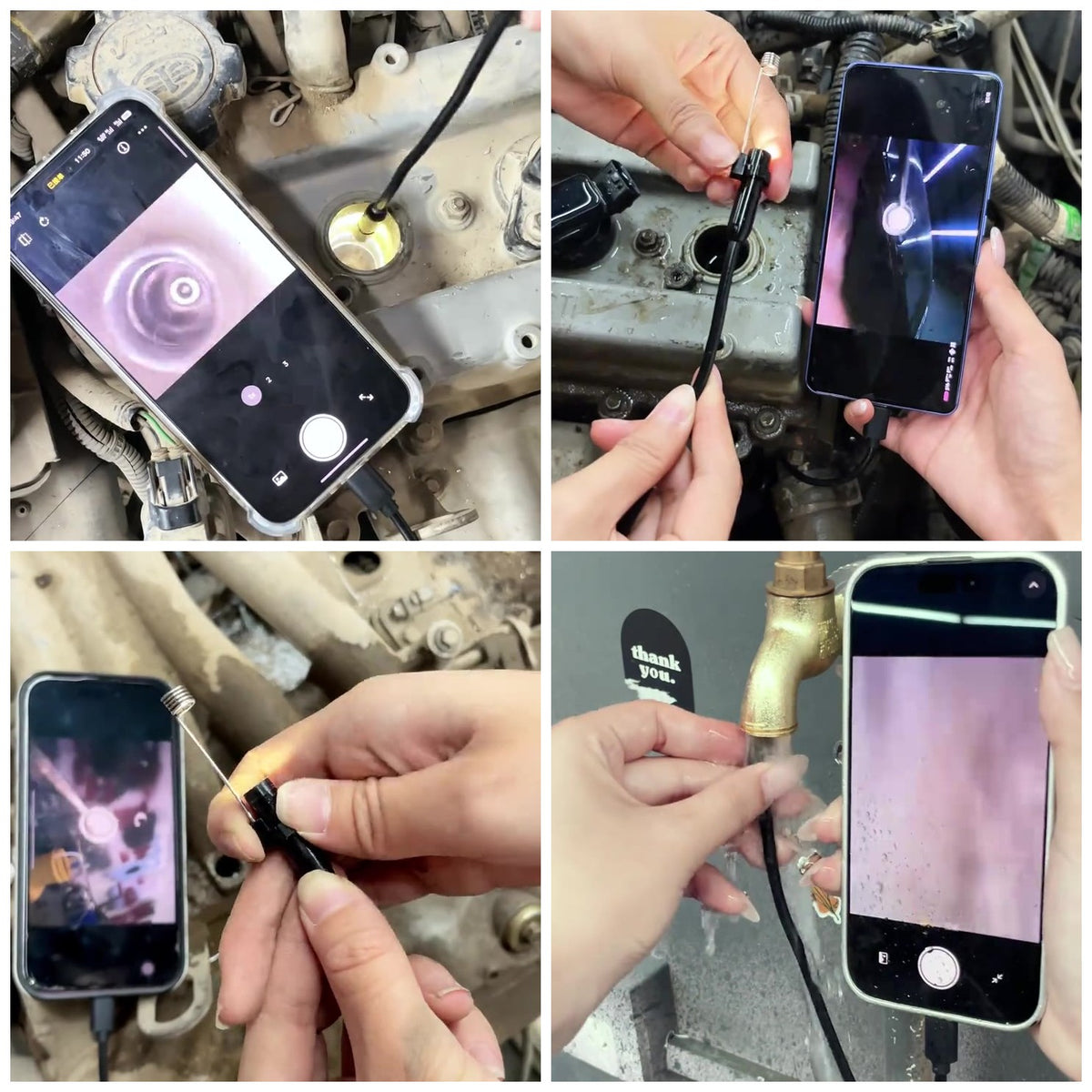

Real clips, shot on a phone — tap for sound

🔇 Tap for soundInto the oil filler, live on the phone
🔇 Tap for soundInside the engine, cover still on
🔇 Tap for soundDown a port, lit by the probe itself
🔇 Tap for soundStraight up a running tap

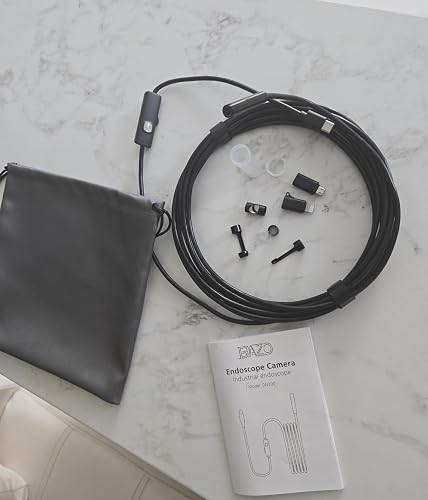

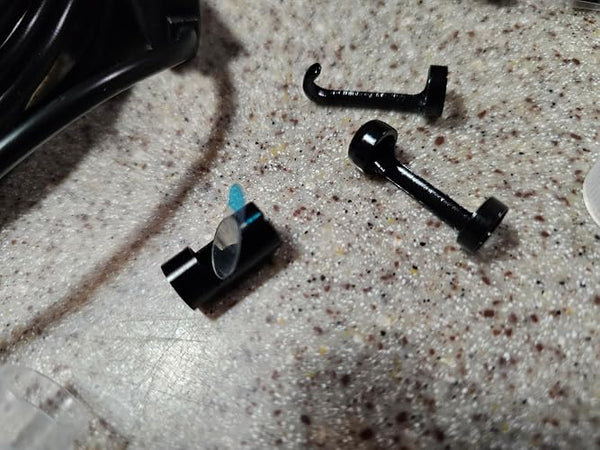

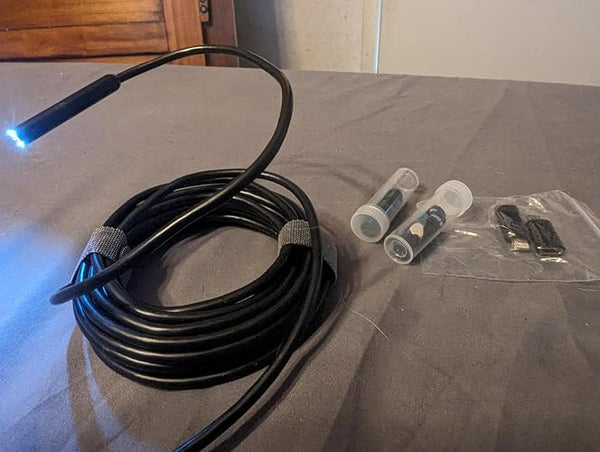

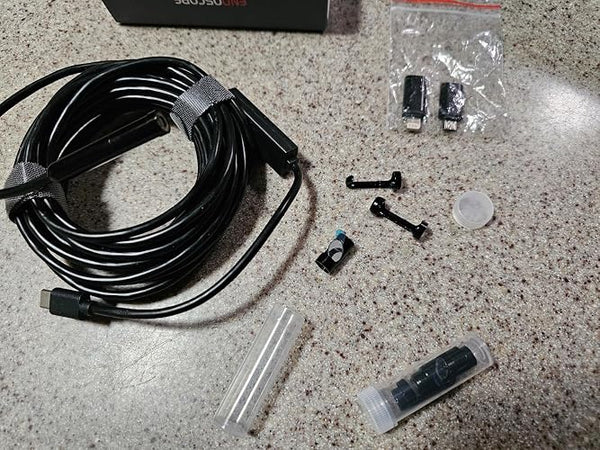

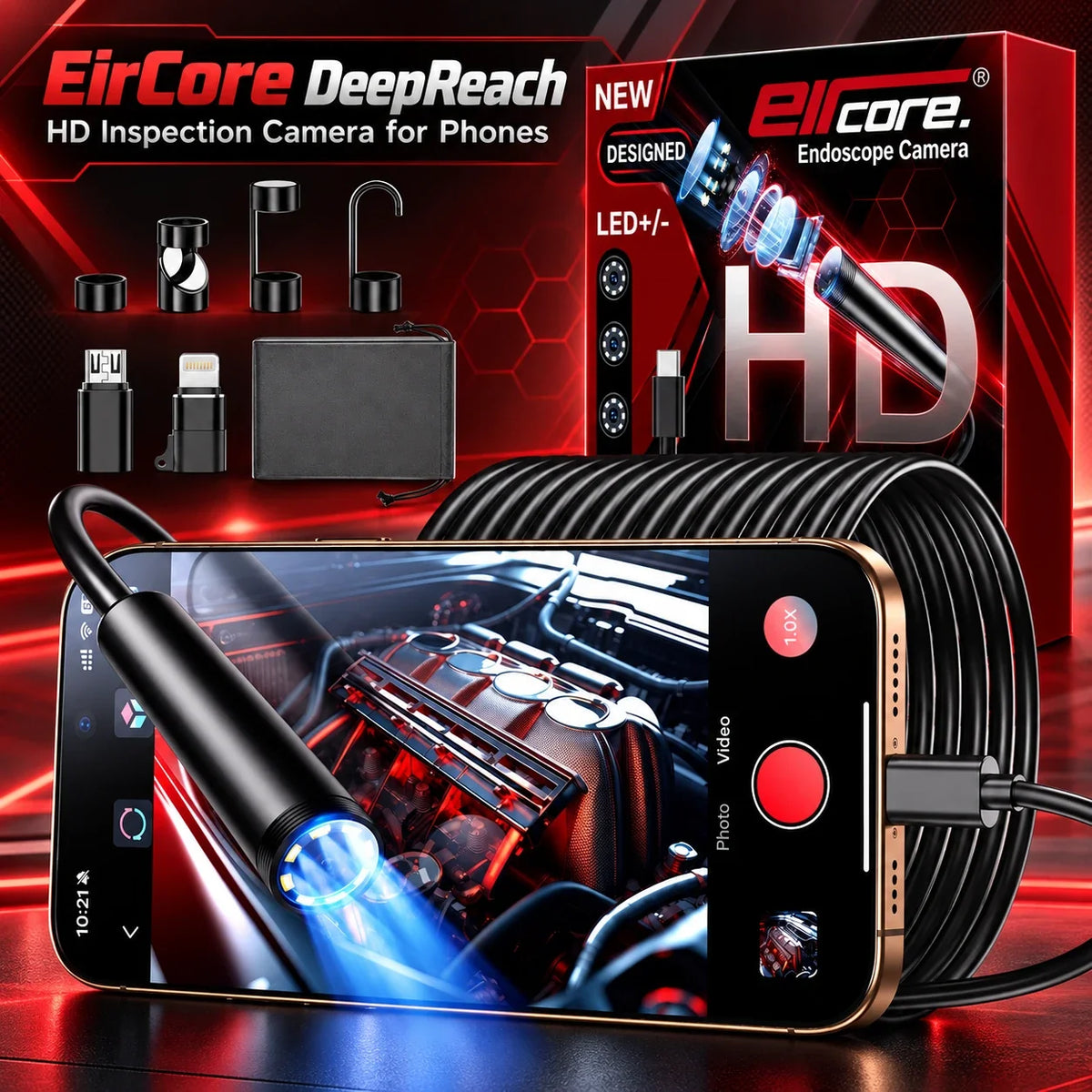

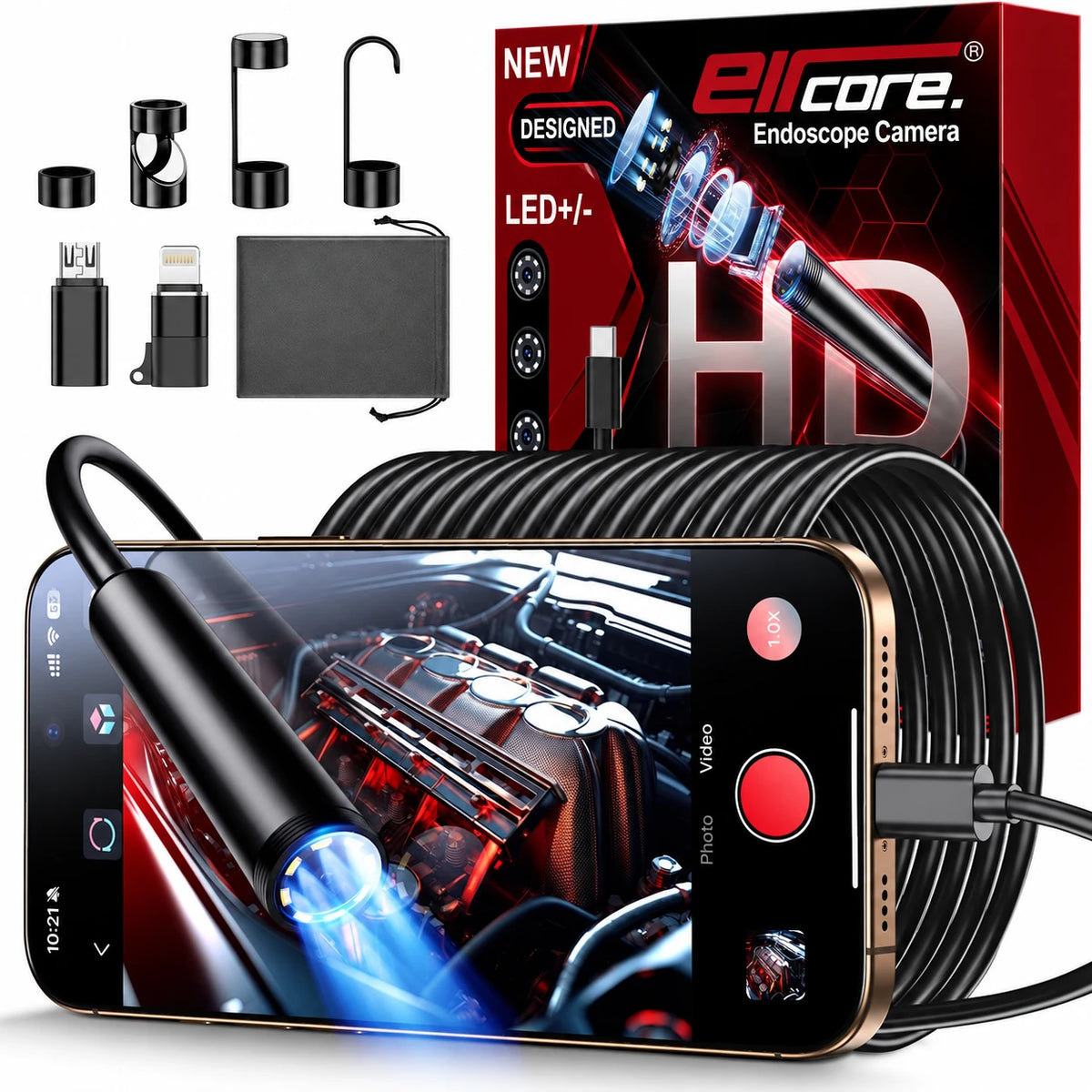

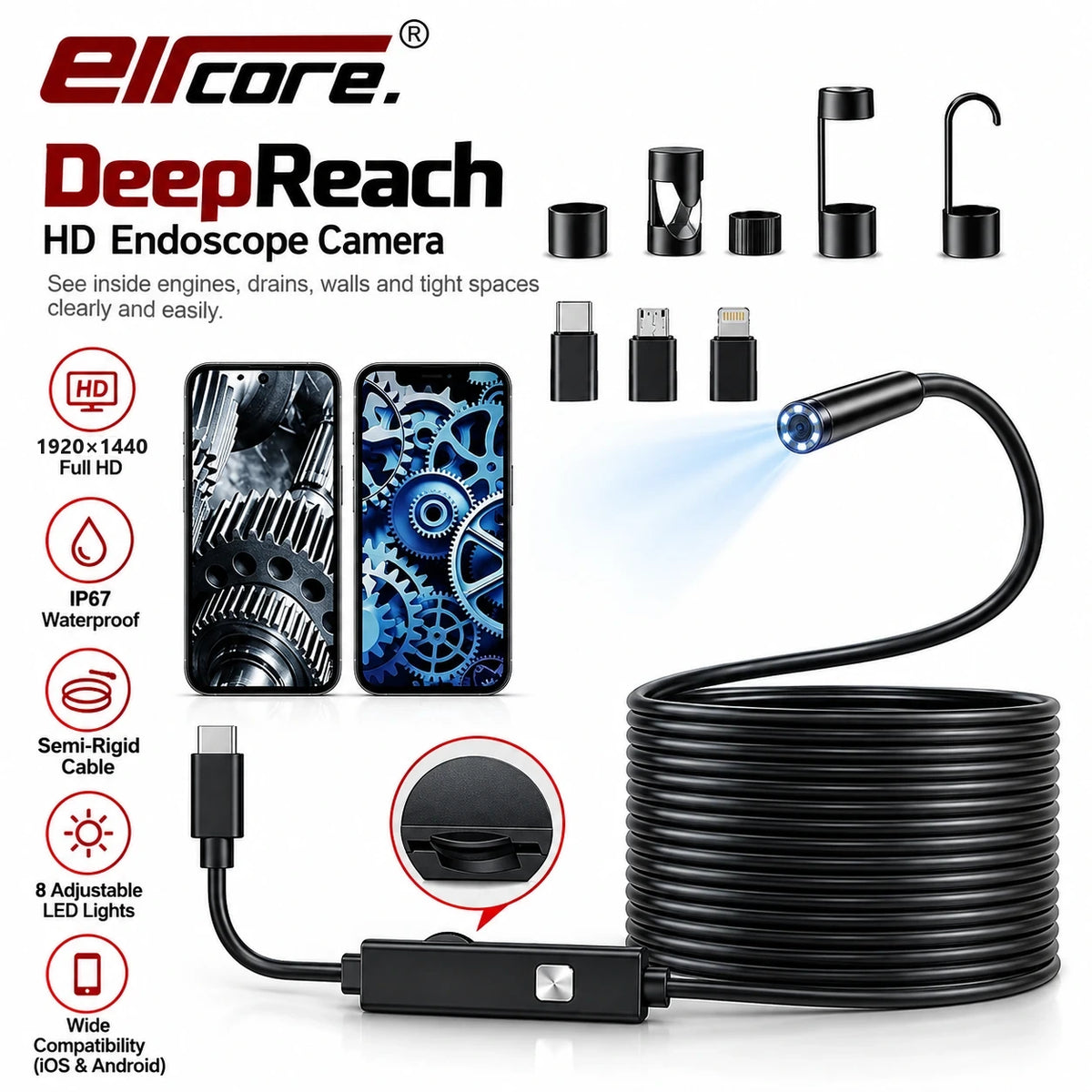

Each kit contains the 11.5 ft (3.5 m) semi-rigid camera cable with a Type-C plug and an inline brightness wheel, a Lightning adapter, a Micro-USB adapter, and four clip-on tips — magnet, hook, side mirror and protective cap — plus the printed manual that names the free app.

Two- and three-kit packs are complete kits, not spare cables.

Resolution: 1920 × 1440
Sensor: 2 MP
Lighting: 8 LEDs around the lens, adjustable on the cable
Probe diameter: 8 mm (5/16”)
Cable: 3.5 m / 11.5 ft, semi-rigid
Sealing: IP67 — probe and cable
Connection: wired USB. Type-C plug, with Lightning and Micro-USB adapters
Phones: iOS 9 and later; Android with USB OTG support
Power: drawn from the phone — no battery

Wired only. This model has no Wi-Fi and creates no network. The IP67 rating covers the probe and cable, not the USB plug or the inline control box.

Free shipping worldwide, no minimum. Processed in 1–2 business days. Most orders arrive in 10–18 days; you get a tracking link by email.

30-day money-back guarantee from delivery. See the Refund Policy in the footer for the full terms.

30-Day Money-Back GuaranteeIf it will not connect to your phone, or it does not show you what you needed to see, email us within 30 days of delivery for a full refund.

The problem was never the repair

It is that you cannot see the thing you are about to work on. Most of the time wasted in a garage starts right there.

  • It went down there somewhere

    The socket bounced off the block and it is gone. You can hear roughly where. You cannot see it, and your arm does not bend that way.

  • A torch in one hand, a mirror in the other

    That leaves no hand for the tool — and you still only see the part that happens to be lit, at the angle the mirror happens to allow.

  • So you take it apart to find out

    An hour of covers and clips to check something that turns out to be fine. Nobody bills you for that hour. You just lose it.

Plug in, look, done

Under two minutes the first time, once the app is installed. After that it is plug, open, look.

1
Fit the plug for your phone Type-C goes straight in. Lightning and Micro-USB adapters are in the box, so an iPhone 12 and a Pixel are the same job.
2
Open the app named in the manual One free app, App Store or Google Play. Your phone’s own camera app will not open a USB camera — that is normal, not a fault.
3
Bend the cable to the shape of the job Put a hook in it, or a dog-leg, or whatever gets you round the corner. It stays in that shape while you steer with one hand.
4
Feed it in and set the light The wheel on the cable dims the eight LEDs. Wind it down close in — full brightness washes out a wet surface.

⏱ Take the photo while you are in there. It is far easier to show a mechanic a picture of the thing than to describe it.

What makes one usable rather than just cheap

Six things that decide whether an inspection camera earns its place in the toolbox or lives in a drawer.

1920 × 1440, not 1080p A 2 MP sensor. Close in, that is the difference between reading a casting number and guessing at it.

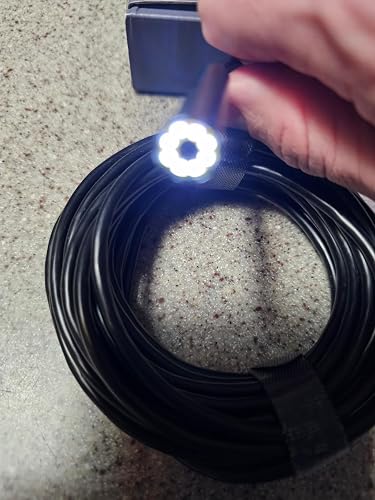

Eight lamps around the lens Ringed round the camera, so the light goes exactly where the lens is looking and the probe casts no shadow of its own.
Brightness on a wheel A wheel on the cable, not an on/off switch. Wind it down an inch from a wet surface; wind it up down a long dark pipe.
Semi-rigid, 11.5 ft Bend it into a hook and it stays bent. A soft cable goes where gravity sends it. This one goes where you point it.
IP67 probe and cable Rated for oil, coolant, a sink trap and standing water. Wipe it, coil it, put it back in the bag.
Three plugs, no battery Type-C, Lightning and Micro-USB in the box. Nothing to charge and no network to join — it runs on the phone’s own power.

Where it actually gets used

Engine bays and cylindersDown the spark-plug hole to look at a piston crown, or into the oil filler before you commit to pulling a cover off.
Behind the panel, before you drillLook inside the door or the trim cavity first, and find out what your screw is about to go through.

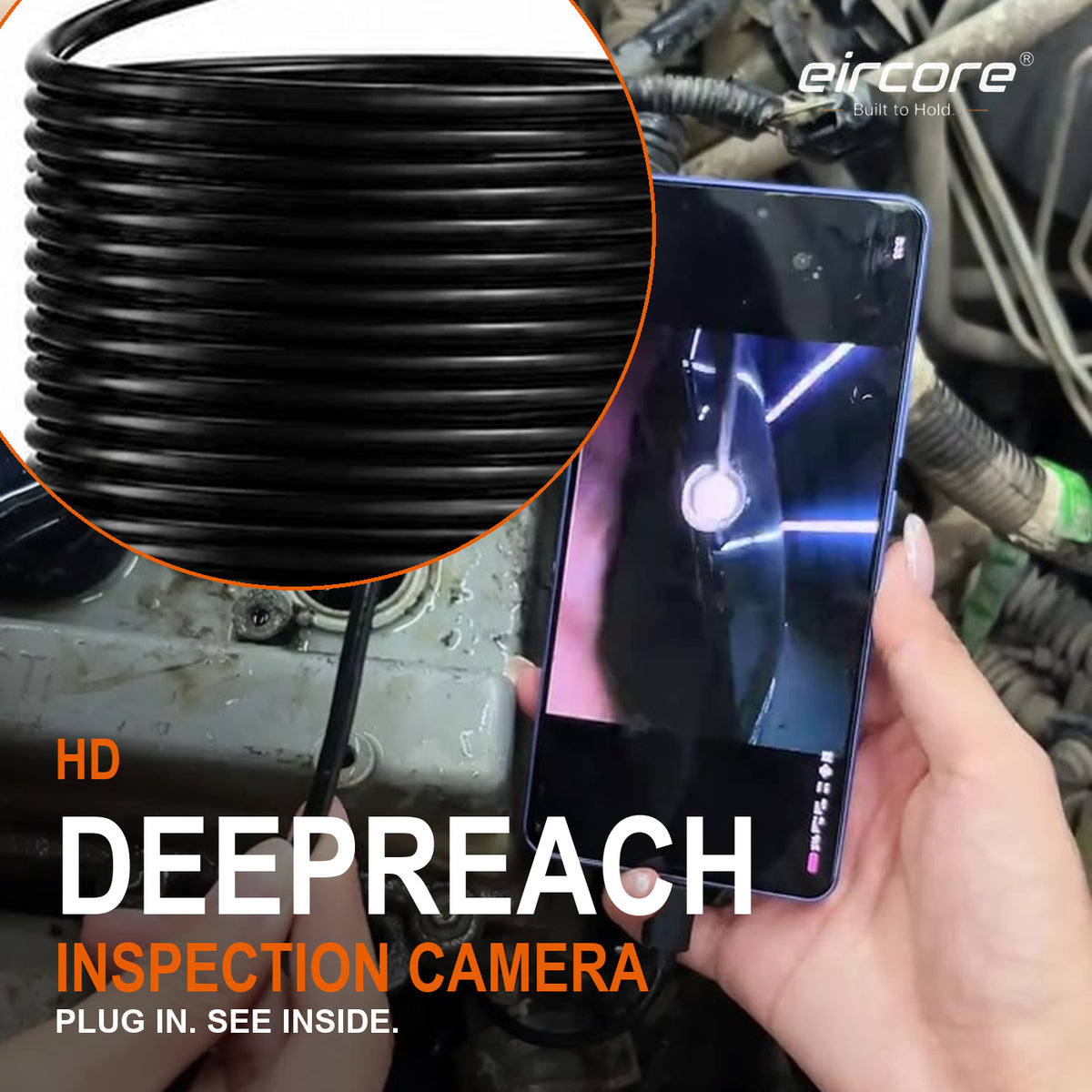

A mechanic feeding the probe into an engine bay while the live view plays on the phone propped on the rocker cover
The thing you droppedClip the magnet onto the head and go and get the socket that went down beside the block.
Drains, vents and wall cavitiesSink traps, dryer ducts, the space behind a stud. Same probe, different afternoon.

Three ways to see somewhere you cannot reach

Everyone already owns the first two. It is worth being honest about what they actually get you.

How a torch and mirror, stripping the part down, and an inspection camera compare on the things that decide whether you find the fault today.
What matters Torch + mirror Take it apart DeepReach
Shows you the inside without opening anything No No Yes
Lights exactly where the lens is looking No Yes Yes
Gets past a bend, or behind a wall No Only by removing the part Yes
Leaves you a photo of what you found Sometimes Yes Yes
How long before you know If you can see it at allAn hour or moreAbout two minutes

Taking it apart is not the wrong answer — sometimes it is the only one. The point is that you get to decide whether it is necessary before you start, instead of after.

Frequently Asked Questions

Will it work with my iPhone?

Yes. Use the Lightning adapter in the box for iPhone 14 and earlier, or plug the Type-C connector straight in on iPhone 15 and later. iOS 9 or newer.

Will it work with my Android?

Yes, as long as the phone supports USB OTG — nearly every Android built since about 2015 does. Both Type-C and Micro-USB adapters are included. If you are not sure, a free “OTG checker” app will tell you in a few seconds.

Which app do I need?

One free app, named in the printed manual and available on both the App Store and Google Play.

Your phone’s built-in camera app will not open a USB camera. That is how phones work — it is not a fault with the camera.

Is it wireless?

No, and that is deliberate. It plugs in: nothing to charge, nothing to pair, and no connection to drop halfway down a pipe. This model has no Wi-Fi and creates no network of its own.

How waterproof is it, really?

The probe head and the cable are IP67 — fine in oil, coolant, a sink trap or standing water.

The USB plug and the inline control box are not. Keep that end dry, and never take the phone near the water.

How small a gap will it fit through?

The head is 8 mm — about 5/16”. If a fat pencil goes through it, so does the probe: a spark-plug hole, an oil filler, a drain, a trim gap.

Can I take photos and video?

Yes. The app saves stills and video onto the phone, so you can send someone a picture of the actual problem instead of a description of it.

Does the cable really hold its shape?

Yes — it is semi-rigid, and bending it is how you steer it. It is not a rigid rod, so over a long unsupported run it will sag. For those, feed it in rather than aim it.

How is this different from your other tools?

EZ-Lock and GripNut fix something you have already found. DeepReach is how you find it. Look first, then take the panel off knowing what is behind it.
